rce-serialization-dotnet

Serialization Vulnerabilities

Serialization vulnerabilities are not just limited to the BinaryFormatter. Any message that includes the type to deserialize poses a threat irrespective of method of serialization. Newtonsoft.Json and MessagePack¹ are also susceptible.

Deserializing messages sent from an untrusted source introduces risk. Compromised messages processed by unsafe deserializers could result in an error at best or a remote code execute exploit at worst. OWASP defines this as:

Data which is untrusted cannot be trusted to be well formed. Malformed data or unexpected data could be used to abuse application logic, deny service, or execute arbitrary code, when deserialized².

This project demonstrates serialization vulnerabilities using Json.NET and the BinaryFormatter.

The Todo project is based on the starter tutorial available here:

Create a controller based API

These examples were assembled based on serialization vulnerabilities highlighted in the ysoserial.net git repo.

Deserialization and Gadget Chains

Most serialization exploits utilize two components.

• Type Specification. Messages that define the type to deserialize allow the caller use a vulnerable type.
• Gadget. An exploitable type that includes a capability to launch a command specified in the message.

Exploitable types are referred to as gadgets. These allow malicious code to be launched using a constructor, property, method, or a code snippet. Gadgets can be a native class or injected into the application. These may not be obvious if a class has a deeply nested hierarchy. In C#, classes that include object types or generics can be suspectable. For example, many public APIs include a capability to store metadata or arbitrary data that’s captured with a Dictionary<string, object>. This opens a door for potential exploitation.

Prerequisites

Install Visual Studio 2022.

Install .NET Framework 4.8.1:

winget install Microsoft.DotNet.Framework.DeveloperPack_4 -v 4.8.1

Install .NET 8:

winget install Microsoft.DotNet.SDK.8

Install Git:

winget install Git.Git

Ysoserial.net

Ysoserial.net creates malicious serialized payloads for a variety of libraries including Json.NET, MessagePack, and BinaryFormatter.

The payloads cannot be programmatically generated using these serializers with native implementations. Ysoserial.net manipulates the serialized message to inject a malicious payload. Deserialization results in a runtime exception; however, a remote code execution exploit is triggered.

1. Enable .NET 3.5 on Windows using the instructions here: Enable .NET 3.5 on Windows. This is required to build ysoserial.net. It exploits vulnerabilities in prior versions of the .NET Framework.

2. Open a command prompt and navigate to:

    %userprofile%\source\repos


3. Clone the ysoserial.net repo.

    git clone https://github.com/pwntester/ysoserial.net.git


4. Open the solution in Visual Studio and build.

5. Navigate to the debug directory in a command prompt.

    %userprofile%\source\repos\ysoserial.net\ysoserial\bin\Debug

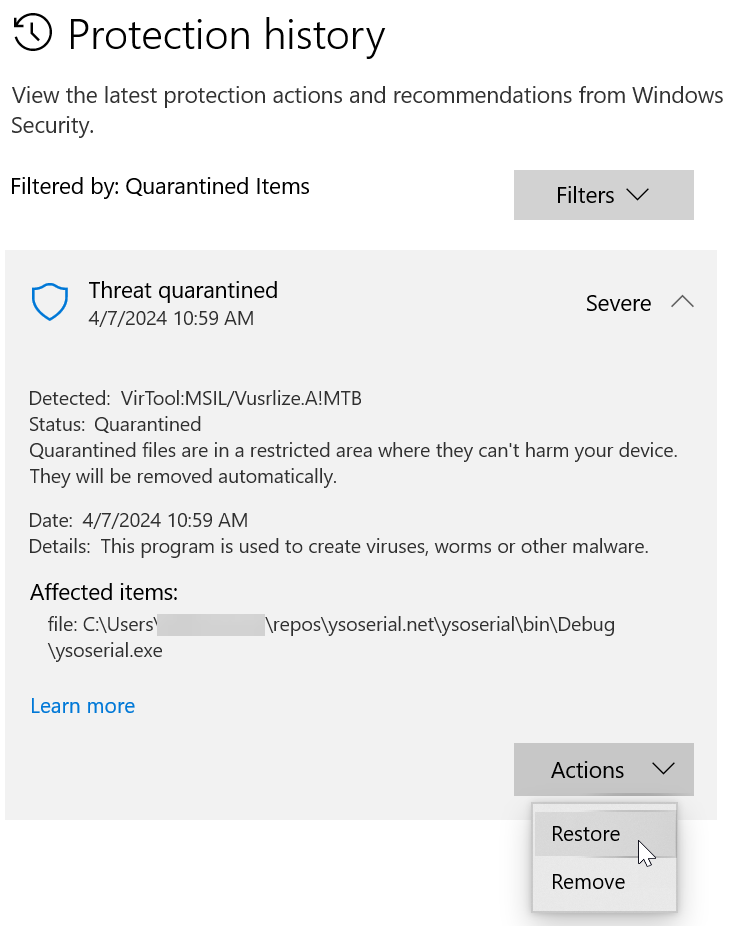

6. Execute ysoserial --help. The executable may not be available. It is considered malware by most malware scanners. Check Windows Security or your active malware scanner for detected threats and remove ysoserial.exe from quarantine.

   a. If ysoserial.exe is not available, navigate to Windows Security and select Virus & Threat Protection. Review threat history and find ysoserial.exe. Select Action

   Restore.



   b. Alternatively, ysoserial can be excluded from threat protection using these instructions: Add an exclusion to Windows Security.

7. Optionally, add the Debug directory to your %PATH%.

Take a moment to review the Usages of ysoserial parameters before embarking into the projects.

Clone rce-serialization-dotnet Repo

The rce-serialization-dotnet repo includes the serializations projects and this documentation.

1. Open a command prompt and navigate to:

    %userprofile%\source\repos


2. Clone the rce-serialization-dotnet repo.

    git clone https://github.com/johniwasz/rce-serialization-dotnet.git


The projects are in the src subdirectory.

Serialization Vulnerability Repros

Each project reproduces a serialization vulnerability.

Project	Description
01-BinaryFormatterVulnerabilities	BinaryFormatter vulnerability in .NET Framework 4.8
02-Framework-JsonVulnerabilities	Json.NET vulnerability in .NET Framework 4.8
03-.NET-JsonVulnerabilities	Json.NET vulnerability in .NET 8

Load the solution in each project in Visual Studio, run the solution, and use the requests.http in the Solution Items folder to walk through the vulnerabilities.

1. MessagePack includes Typeless deserialization which embeds the type to deserialize in the message. ↩

2. Deserialization of Untrusted Data ↩
